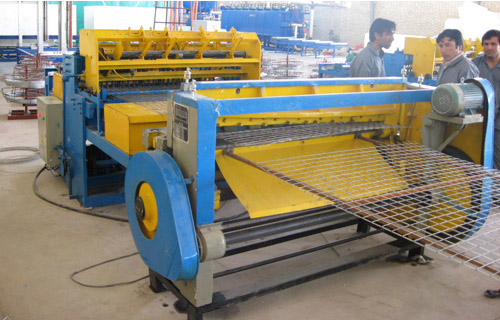

Steel wire mesh welding machines
The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 50 x 100mm;PLC control system to automatically straightens, welds and cuts the steel wire; The A type machine has the mechanical transmission system; The B type machine makes use of the integrated pneumatic system to ensure that the operation is stable.
Features of Steel Wire Mesh Welding Machines:
- The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 50 x 100mm;
- PLC control system to automatically straightens, welds and cuts the steel wire;
- The A type machine has the mechanical transmission system;
- The B type machine makes use of the integrated pneumatic system to ensure that the operation is stable, high reliability and long life span of the equipment.
- The horizontal steel wires use the integrated straightening and cutting system to ensure stable operation and high accuracy;
- The Automatic Alarm Device is easy to operate and maintenance;
- Will automatically cut the steel wire mesh according the pre-set mesh length.
Technical Data of Steel Wire Mesh Welding Machines:
| Number | Items | Type \Unit | 3D-MW-3B | 3D-MW-4B |
|---|---|---|---|---|
| 1 | Production Capacity | M2/hr | 80 | 70 |
| 2 | Welding Intensity | N | Pull-off force for each spot≥350 | Pull-off force for each spot≥700 |
| 3 | Mesh Longitudinal Error | mm | ≤±0.2 | ≤±0.2 |
| 4 | Welding Defect Rate | % | ≤1 | ≤1 |
| 5 | Steel Wire Diameter | mm | 2.0-3.0 | 2.0-4.0 |
| 6 | Power Supply | 380V, 50Hz, 60KVA | 380V, 50Hz, 75KVA | |
| 7 | Max. Outer Dimension | mm | 15800x2780x1500 | 15800x2780x1500 |
| 8 | Machine Net Weight | kg | 2800 | 3000 |
