Metal stud and track forming machines

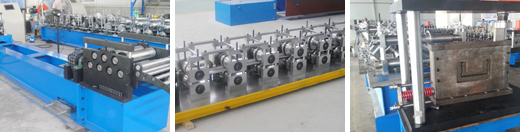

This stud roll former mainly consist of hydraulic de-coiler, feeding device, roll forming system, hole puncher (optional), hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Feature of Metal Stud and Track Forming Machines:
- Excellent strength
- Quick and easy installation
- Length is optional according to requirement
- Widely used as the steel frame and inner decoration supporter.
De-coiler->Leveling Device->Feeding Device->Roller Forming Machine ->Straightening Device-> Tracking Cutting Device ->Product Stand Tables
Technical Parameter:
| Item | Parameter | |
|---|---|---|
| Suitable material | Type | GI, PPGI |
| Thickness | 0.4-0.8(mm) | |
| Machine Materia | Active shaft | No.45 steel tempered |
| Roller | No.45 steel chrome plated | |
| Cutting Blade | Cr12 quenched | |
| Power Requirement | Type | 80V/3PH/50HZCustomized |
| Main Motor | 3kw | |
| Hydraulic | 2.2kw | |
| Hydraulic Cantilever Decoiler | Type | Hydraulic automatic |
| Max Capacity | 2000kgs | |
| Suitable OD | 1200mm | |
| Suitable ID | 508/610mm | |
| Max Width | 300mm | |
| Motor Power | 2.2kw | |
| Hydraulic Power | 2.2kw | |
| Forming Speed (Excludes cutting punching) | 20-25m/min | |
| Forming Stand | About 14 group | |
| Transmission | Chain,sprocket | |
| Type of Cutting | length-set cutting | |
| Control System | Mitsubishi PLC transducer | |

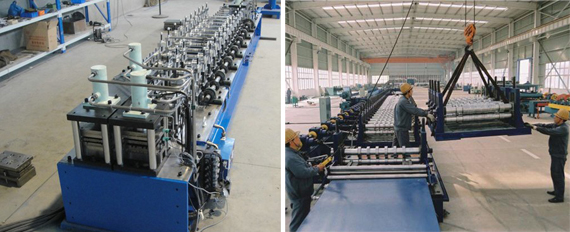

This machine is designed to produce different sizes by exchange rollers and cutter moulds. This is a quick change mode.The following picture watched.
