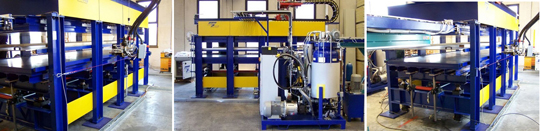

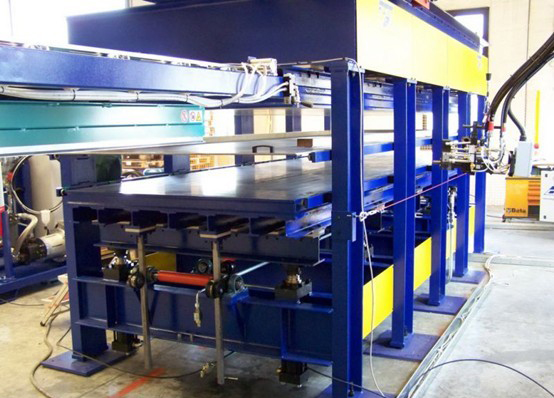

Cold storage panel line
The line can make PU cam lock panel, its standard width is 960mm and the length in the common is less than 6.5m. It can make small cold room, panel’s thickness is 60mm, 75mm, 100mm, 120mm,150mm, 180mm and has the features of the smaller figure and cheaper than continuous line and it is suitable for building refrigerator house and other small constructions.
Advantages of PU Sandwich Panel:
- Thermal Insulation
- Fireproofing (PU Foam)
- Water & Moisture-Proofing
- Sound insulation
- Rigidity
- Easy Application
- Saving Cost
- Various Architectural Styles
- Beautiful Appearance
Technical Datas of Cold Storage Panel Line:
|
Raw material |
Color coated steel coil or Aluminum sheet |
|---|---|
| Coil thickness | 0.4-0.7mm |
| Coil width | 400-1200mm |
| Line speed | 1~8 m/min |
| PU injection | By arm or crane |
| Panel length | 1~6mm |
| Panel width | Max 1200mm |
| Panel thickness | 40~200mm |
| Core material | Polyurethane |
| Foam density | Approx 35~45 kg/m3 |
| Thermal conductivity | 0.018 – 0.020(W/m°K) |
| Tensile strength | 300–500 (KP a) |
| Water vapor transmission | 1.8-3.8(Perm-in) |
| Bending strength | 550–560 (KP a) |
| Stable operating temperature | -40to+50(°c) |
| Required man power PU line | 4-6workers |

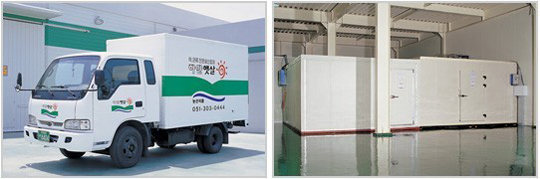

Applications of PU Sandwich Panel:
It has the features of the smaller figure and cheaper than continuous line and it is suitable for
building refrigerator house and other small constructions.
Thickness of cold room panel Application temperature:
50mm Temperature 5°C or above
75mm Temperature -5°C or above
100mm Temperature -25°C or above
120mm Temperature -30°C or above
150mm Temperature -45°C or above
200mm Temperature -55°C or above

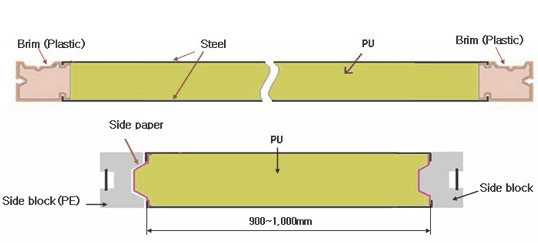

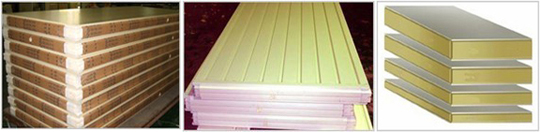

Details of PU Sandwich Panel:
